Aiguille industrielle · UY 128 GBS
UY 128 GBS FG Chromium
UY 128 GBS
FG
Chromium
12
Point style FG - Cloth point Medium ball point • Round point with medium ball • Suitable for loose-knit fabrics, elastic material and material containing rubber or elastane Coating Chromium Needle with standard chrome coating. Recommended for: Elastic fabrics Examples of use: Lace, Underwear, Bandages
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 60/8 | 771692 | 44.6 mm | 100 pièces | 0.86 g |
| 70/10 | 781712 | 44.6 mm | 100 pièces | 0.88 g |
| 75/11 | 781742 | 44.6 mm | 100 pièces | 0.89 g |
| 80/12 | 756262 | 44.6 mm | 100 pièces | 0.895 g |
| 85/13 | 771702 | 44.6 mm | 100 pièces | 0.91 g |
| 100/16 | 742572 | 44.6 mm | 100 pièces | 0.923 g |
| 110/18 | 782412 | 44.6 mm | 100 pièces | 0.966 g |
| 120/19 | 782422 | 44.6 mm | 100 pièces | 0.987 g |
| 130/21 | 782432 | 44.6 mm | 100 pièces | 1.009 g |
| 140/22 | 771842 | 44.6 mm | 100 pièces | 1.05 g |
| 150/ | 771852 | 44.6 mm | 100 pièces | 1.084 g |
| 160/23 | 771862 | 45.2 mm | 100 pièces | 1.242 g |
Caractéristiques techniques
| Shank diameter | 2 mm |
|---|---|
| Length butt to eye | 38.9 mm |
| Shank length | 14.5 mm |
| Coating | Chromium |

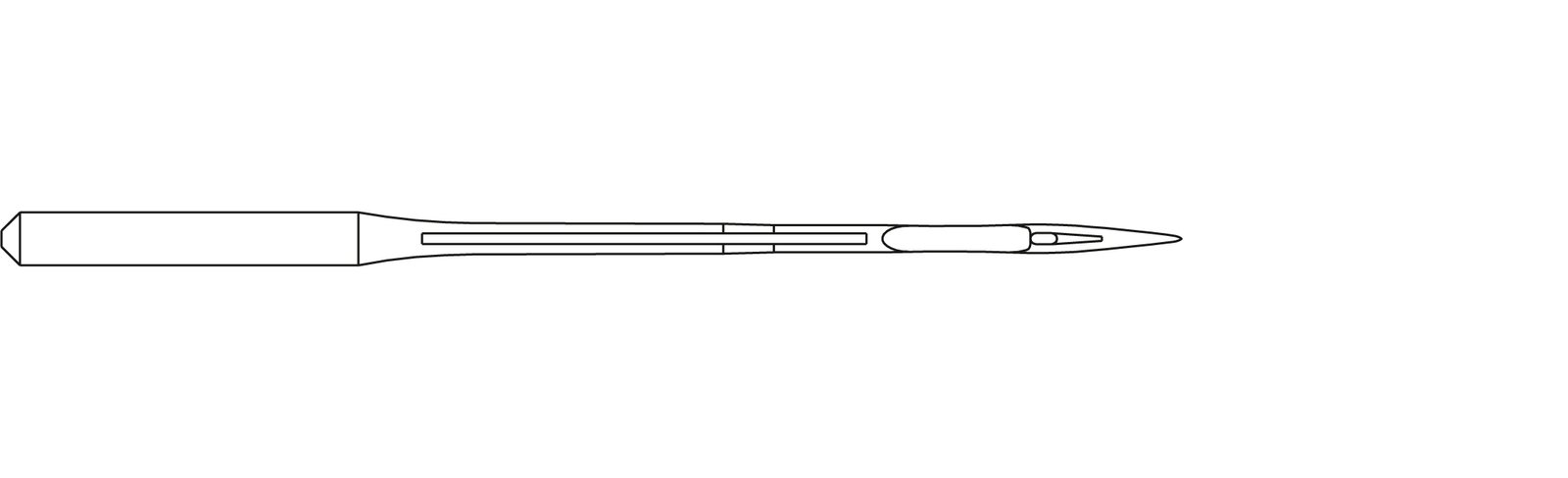

| Needle form | B |
| Needle form description | B1 – Straight needle with double groove and scarf |
| Canu designation | 38:00 |
| Further point designations | SUK |
| Further point designations 02 | B BALL |
| Further point designations 03 | M BALL |
| Further point designations 04 | SI |
| Further point designations 05 | BPM |
| Further point designations 06 | LAC |
| Further point designations 07 | R SUK |
| Further point designations 08 | U |
| Further point designations 09 | R KB |
| Technical sewing application | Double chain stitch, Cover chain stitch |
| Stitch type class | 400, 600 |
| Point style | FG - Cloth point |
| Needle system | UY 128 GBS |
| Needle system family | UY 128 |
