Aiguille industrielle · UY 128 SAN 10
UY 128 SAN 10 RG Chromium
UY 128 SAN 10
RG
Chromium
1
Point style RG - Cloth point Normal round point with small ball • Slightly rounded shape of the point • Suitable for knitted and woven fabrics and microfiber • Standard point for chainstitch as well as single and multihead embroidery • Perfectly suited for button sewing Coating Chromium Needle with standard chrome coating. Recommended for: Fine knitwear and fine woven fabrics with critical sewability Examples of use: Underwear, T-shirts, Sportswear
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 55/7 | 775262 | 44.6 mm | 100 pièces | 0.839 g |
Caractéristiques techniques
| Shank diameter | 2 mm |
|---|---|
| Needle size Asia | 7 |
| Length butt to eye | 38.9 mm |
| Overall length | 44.6 mm |
| Shank length | 14.5 mm |
| Coating | Chromium |
| Needle form | B |

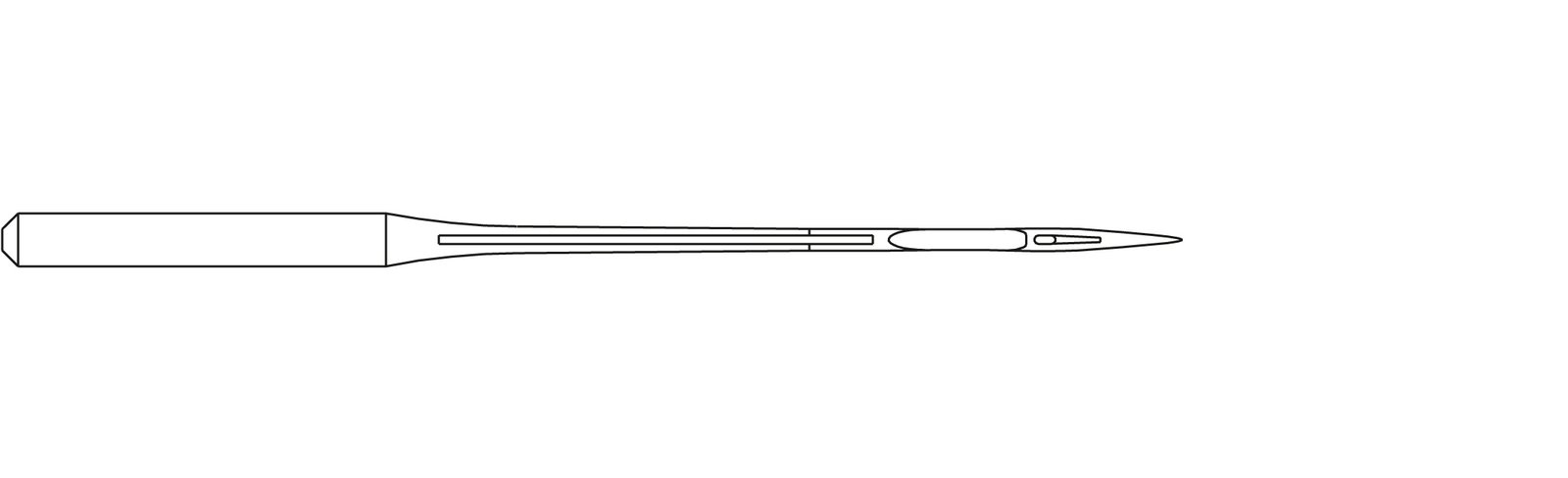

| Needle form description | B1 – Straight needle with double groove and scarf |
| Canu point | R |
| Special application needle | SAN10 – SAN™ 10 for the processing of fine knitware and woven |
| Canu designation | 38:00 |
| Catalog designation | 389200BC34RG |
| Further point designations | STU |
| Further point designations 02 | STUB |
| Further point designations 03 | S BALL |
| Further point designations 04 | SET RT |
| Further point designations 05 | EH |
| Further point designations 06 | H SET |
| Further point designations 07 | NEW RD |
| Further point designations 08 | R STU |
| Technical sewing application | Double chain stitch, Cover chain stitch |
| Stitch type class | 400, 600 |
| Recommended for | Fine knitwear and fine woven fabrics with critical sewability |
| Examples of use | Underwear, T-shirts, Sportswear |
| Needle size | 55 Nm |
| Point style | RG - Cloth point |
| Needle system | UY 128 SAN 10 |
| Needle system family | UY 128 |
| Variant | SAN 10 |
| Pack standard | N-S-00017 – Standard Packaging |
| Customary needle designations | UYX 128 SAN 10 |
| System designation 2 | TVX3 KN |
| System designation 3 | UY128 GJS |
| Seam | Close sides, Topstitch collar, Hem sleeve openings, Attach collar, Bottom hem |
| Needle recommendation | Quality plus choice |
