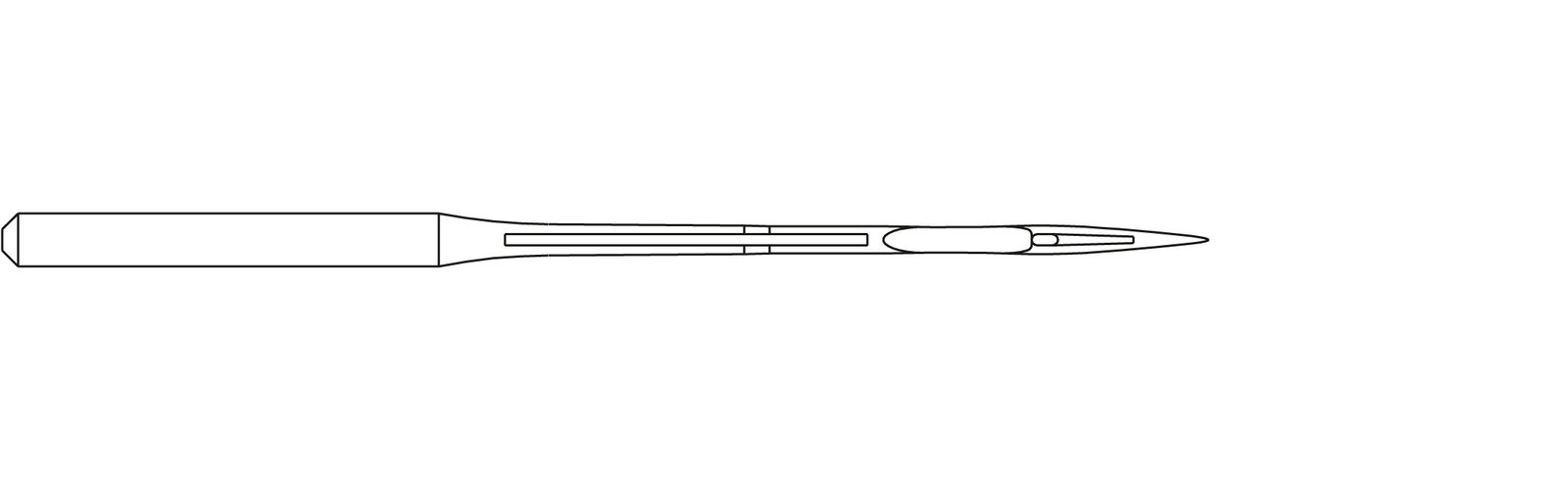

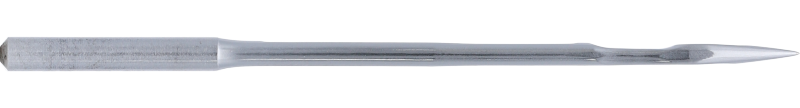

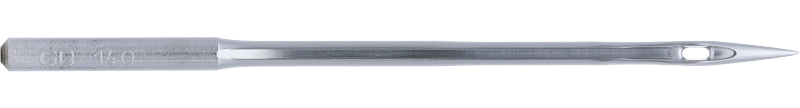

Aiguille industrielle · UY 130 GS

UY 130 GS RG Chromium

UY 130 GS RG Chromium
SystèmeUY 130 GS
PointeRG
FinitionChromium
Tailles5

Point style RG - Cloth point Normal round point with small ball • Slightly rounded shape of the point • Suitable for knitted and woven fabrics and microfiber • Standard point for chainstitch as well as single and multihead embroidery • Perfectly suited for button sewing Coating Chromium Needle with standard chrome coating. Recommended for: Leightweight to and medium-weight knitwear and woven fabrics, Soft leather for clothing Examples of use: Jeans, Suits

Tailles disponibles

Taille (Nm)RéférenceLongueur totaleConditionnementPoids
100/16 705572 45.6 mm 100 pièces 1.048 g
110/18 705582 45.6 mm 100 pièces 0.986 g
125/20 705602 45.6 mm 100 pièces 1.166 g
140/22 705612 45.6 mm 100 pièces 1.212 g
150/ 705622 45.6 mm 100 pièces 1.18 g

Caractéristiques techniques

Shank diameter2 mm
Length butt to eye38.9 mm
Overall length45.6 mm
CoatingChromium
Needle formB
Needle form descriptionB1 – Straight needle with double groove and scarf
Canu pointR
Canu designation38:31
Catalog designation389200BC12RG
Further point designationsSTU
Further point designations 02STUB
Further point designations 03S BALL
Further point designations 04SET RT
Further point designations 05EH
Further point designations 06H SET
Further point designations 07NEW RD
Further point designations 08R STU
Technical sewing applicationDouble chain stitch
Stitch type class400
Point styleRG - Cloth point
Needle systemUY 130 GS
Needle system familyUY 130
VariantGS
Pack standardN-S-00018 – Packaging 9
Customary needle designationsUYX 130 G
System designation 2DVX47
System designation 362X43
System designation 462X47
System designation 5SY 3516
System designation 6SY 3518
System designation 7SY 7298
