Aiguille industrielle · UY 133 GS

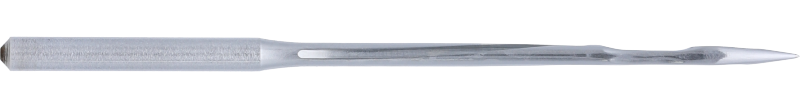

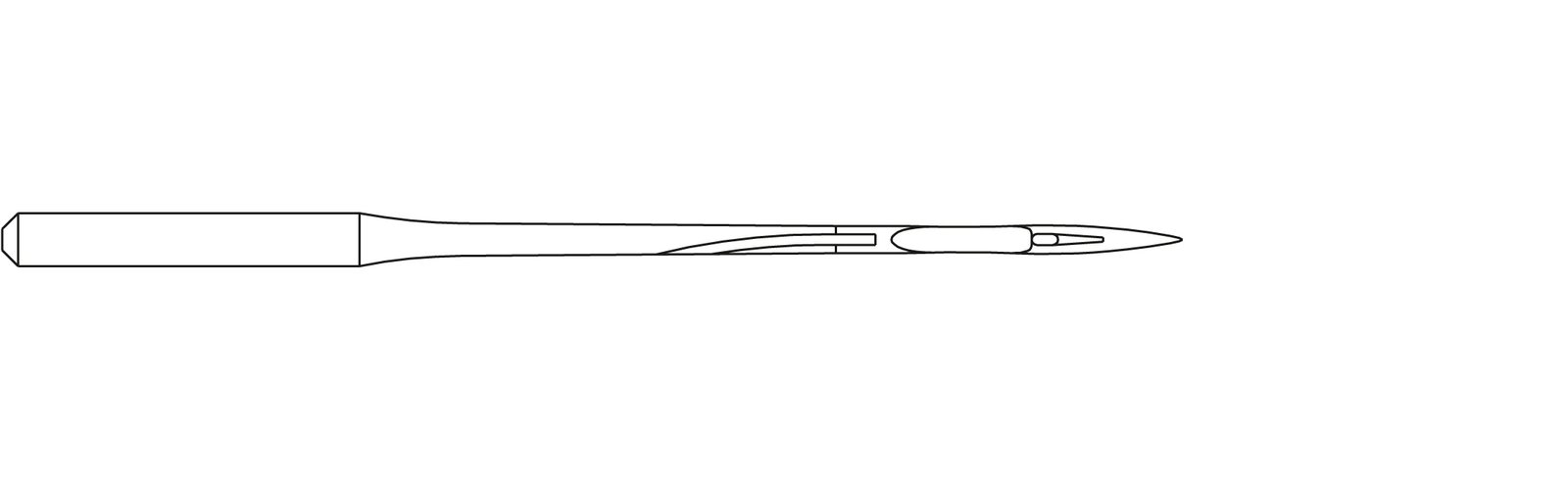

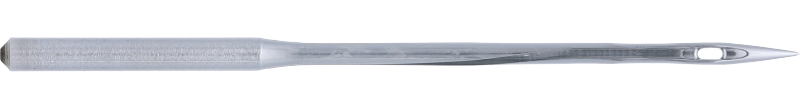

UY 133 GS RG Chromium

UY 133 GS RG Chromium
SystèmeUY 133 GS
PointeRG
FinitionChromium
Tailles8

Point style RG - Cloth point Normal round point with small ball • Slightly rounded shape of the point • Suitable for knitted and woven fabrics and microfiber • Standard point for chainstitch as well as single and multihead embroidery • Perfectly suited for button sewing Coating Chromium Needle with standard chrome coating. Special(s): Spiral groove Recommended for: Fine knitwear, Woven fabrics, Thin leather Examples of use: Shirts, Blouses, Trousers

Tailles disponibles

Taille (Nm)RéférenceLongueur totaleConditionnementPoids
70/10 705762 44.6 mm 100 pièces 0.867 g
80/12 705772 44.6 mm 100 pièces 0.905 g
90/14 705782 44.6 mm 100 pièces 0.912 g
100/16 705792 44.6 mm 100 pièces 0.917 g
110/18 705802 44.6 mm 100 pièces 0.947 g
120/19 757432 44.6 mm 100 pièces 0.967 g
125/20 705812 44.6 mm 100 pièces 0.985 g
140/22 705822 44.6 mm 100 pièces 1.028 g

Caractéristiques techniques

Shank diameter2 mm
Length butt to eye38.9 mm
Overall length44.6 mm
CoatingChromium
Needle formB
Needle form descriptionB1 – Straight needle with double groove and scarf
Canu pointR
Canu designation37:40
Catalog designation389200BC17RG
Further point designationsSTU
Further point designations 02STUB
Further point designations 03S BALL
Further point designations 04SET RT
Further point designations 05EH
Further point designations 06H SET
Further point designations 07NEW RD
Further point designations 08R STU
Technical sewing applicationDouble chain stitch
Stitch type class400
Special(s)Spiral groove
Point styleRG - Cloth point
Needle systemUY 133 GS
Needle system familyUY 133
Pack standardN-S-00017 – Standard Packaging
Customary needle designationsUYX 133 G
System designation 2104 SC
System designation 3SY 7302
