Aiguille industrielle · UY 154 GBS
UY 154 GBS RG Chromium
UY 154 GBS
RG
Chromium
5
Point style RG - Cloth point Normal round point with small ball • Slightly rounded shape of the point • Suitable for knitted and woven fabrics and microfiber • Standard point for chainstitch as well as single and multihead embroidery • Perfectly suited for button sewing Coating Chromium Needle with standard chrome coating. Special(s): Flat shank at 270° Recommended for: Fine knitwear, Woven fabrics, Thin leather Examples of use: Shirts, Blouses, Trousers
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 65/9 | 706282 | — | 100 pièces | 0.66 g |
| 70/10 | 706292 | — | 100 pièces | 0.66 g |
| 75/11 | 706302 | — | 100 pièces | 0.765 g |
| 80/12 | 706312 | — | 100 pièces | 0.683 g |
| 90/14 | 754342 | — | 100 pièces | 0.6 g |
Caractéristiques techniques
| Length butt to eye | 31.2 mm |
|---|---|
| Coating | Chromium |
| Needle form | M |

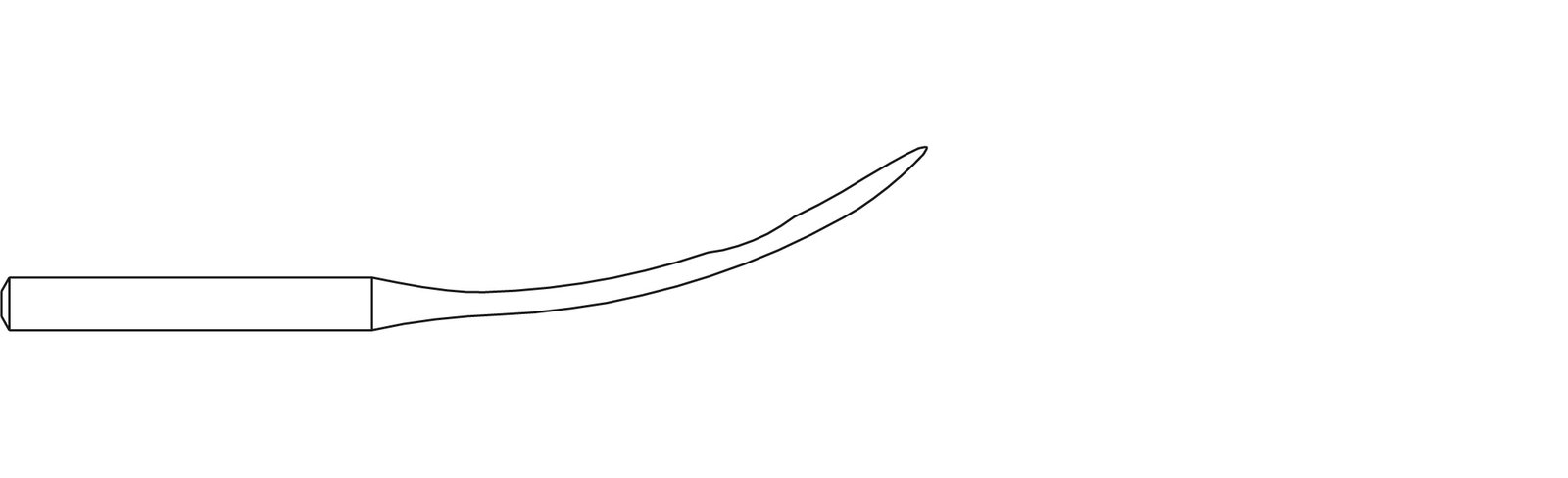

| Needle form description | M1 – Curved needle with one flat on the shank |
| Canu point | R |
| Canu designation | 06:59 |
| Catalog designation | 312201MC01RG |
| Further point designations | STU |
| Further point designations 02 | STUB |
| Further point designations 03 | S BALL |
| Further point designations 04 | SET RT |
| Further point designations 05 | EH |
| Further point designations 06 | H SET |
| Further point designations 07 | NEW RD |
| Further point designations 08 | R STU |
| Technical sewing application | Overlock stitch |
| Stitch type class | 500 |
| Point style | RG - Cloth point |
| Needle system | UY 154 GBS |
| Needle system family | UY 154 |
| Variant | GBS |
| Customary needle designations | UOX 154 |
| System designation 2 | UYX 154 GBS J |
| System designation 3 | SY 6430 |
