Aiguille industrielle · UY 154 GDS
UY 154 GDS RG Chromium
UY 154 GDS
RG
Chromium
5
Point style RG - Cloth point Normal round point with small ball • Slightly rounded shape of the point • Suitable for knitted and woven fabrics and microfiber • Standard point for chainstitch as well as single and multihead embroidery • Perfectly suited for button sewing Coating Chromium Needle with standard chrome coating. Special(s): Flat shank at 270°, Flat shank at 90° Recommended for: Fine knitwear, Woven fabrics, Thin leather Examples of use: Shirts, Blouses, Trousers
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 70/10 | 706372 | — | 100 pièces | 0.63 g |
| 75/11 | 706382 | — | 100 pièces | 0.635 g |
| 80/12 | 706392 | — | 100 pièces | 0.655 g |
| 90/14 | 706402 | — | 100 pièces | 0.66 g |
| 100/16 | 742732 | — | 100 pièces | 0.677 g |
Caractéristiques techniques
| Shank diameter | 2.01 mm |
|---|---|
| Length butt to eye | 31.2 mm |
| Coating | Chromium |
| Needle form | M |

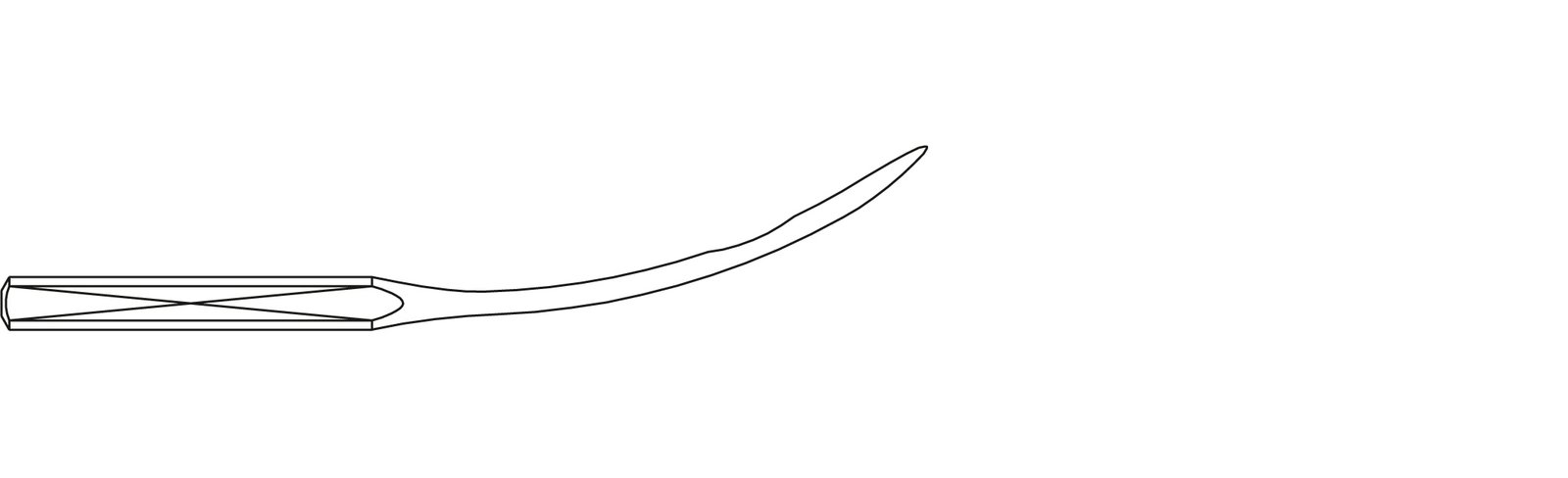

| Needle form description | M2 – Curved needle with two flats on the shank |
| Canu point | R |
| Canu designation | 06:61 |
| Catalog designation | 312201MC02RG |
| Further point designations | STU |
| Further point designations 02 | STUB |
| Further point designations 03 | S BALL |
| Further point designations 04 | SET RT |
| Further point designations 05 | EH |
| Further point designations 06 | H SET |
| Further point designations 07 | NEW RD |
| Further point designations 08 | R STU |
| Technical sewing application | Overlock stitch |
| Stitch type class | 500 |
| Special(s) | Flat shank at 270°, Flat shank at 90° |
| Point style | RG - Cloth point |
| Needle system | UY 154 GDS |
| Needle system family | UY 154 |
| Variant | GDS |
| Customary needle designations | UYX 154 GDS |
| System designation 2 | UYX 154 GBS J |
| System designation 3 | SY 6432 |
