Aiguille industrielle · UY 154 GHS
UY 154 GHS FFG Chromium
UY 154 GHS
FFG
Chromium
10

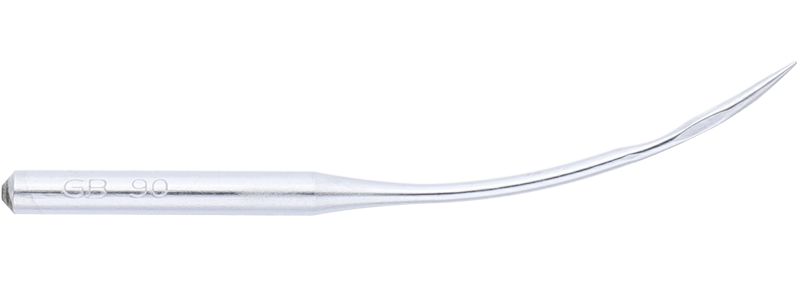

Point style FFG - Cloth point Small ball point • Round point with small ball • Suitable for fine and medium-weight knitted and woven fabrics • When penetrating the material, the small ball point displaces the loops so that the material doesn‘t get damaged • Perfectly suited for jersey and tricot fabrics Coating Chromium Needle with standard chrome coating. Special(s): Flat shank at 270° Recommended for: Fine knitwear, Woven fabrics Examples of use: Shirts, Blouses, Underwear
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 55/7 | 706512 | — | 100 pièces | 0.665 g |
| 60/8 | 706522 | — | 100 pièces | 0.663 g |
| 65/9 | 706532 | — | 100 pièces | 0.844 g |
| 70/10 | 706542 | — | 100 pièces | 0.842 g |
| 75/11 | 706552 | — | 100 pièces | 0.783 g |
| 80/12 | 706562 | — | 100 pièces | 0.788 g |
| 90/14 | 706572 | — | 100 pièces | 0.865 g |
| 100/16 | 706582 | — | 100 pièces | 0.903 g |
| 110/18 | 706592 | — | 100 pièces | 0.715 g |
| 125/20 | 757102 | — | 100 pièces | 0.751 g |
Caractéristiques techniques
| Shank diameter | 2.01 mm |
|---|---|
| Length butt to eye | 31.5 mm |
| Coating | Chromium |
| Needle form | M |
| Needle form description | M1 – Curved needle with one flat on the shank |
| Canu point | SES |
| Canu designation | 06:60 |
| Catalog designation | 315201MC01FFG |
| Further point designations | SES |
| Further point designations 02 | L BALL |
| Further point designations 03 | J BALL |
| Further point designations 04 | SIN |
| Further point designations 05 | NYR |
| Further point designations 06 | BPL |
| Further point designations 07 | TB |
| Further point designations 08 | B |
| Further point designations 09 | R K |
| Technical sewing application | Overlock stitch |
| Stitch type class | 500 |
| Special(s) | Flat shank at 270° |
| Point style | FFG - Cloth point |
| Needle system | UY 154 GHS |
| Needle system family | UY 154 |
| Variant | GHS |
| Customary needle designations | UYX 154 GAS J |
| System designation 2 | 151X21 SES |
| System designation 3 | UY 154 FGS |
| System designation 4 | SY 1433 |
