Aiguille industrielle · UY 154 GHS
UY 154 GHS FG Chromium
UY 154 GHS
FG
Chromium
4
Point style FG - Cloth point Medium ball point • Round point with medium ball • Suitable for loose-knit fabrics, elastic material and material containing rubber or elastane Coating Chromium Needle with standard chrome coating. Special(s): Flat shank at 270° Recommended for: Elastic fabrics Examples of use: Lace, Underwear, Bandages
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 70/10 | 706472 | — | 100 pièces | 0.68 g |
| 75/11 | 753892 | — | 100 pièces | 0.58 g |
| 80/12 | 706482 | — | 100 pièces | 0.681 g |
| 90/14 | 706492 | — | 100 pièces | 0.6 g |
Caractéristiques techniques
| Shank diameter | 2.01 mm |
|---|---|
| Length butt to eye | 31.5 mm |
| Shank length | 14 mm |
| Coating | Chromium |
| Needle form | M |

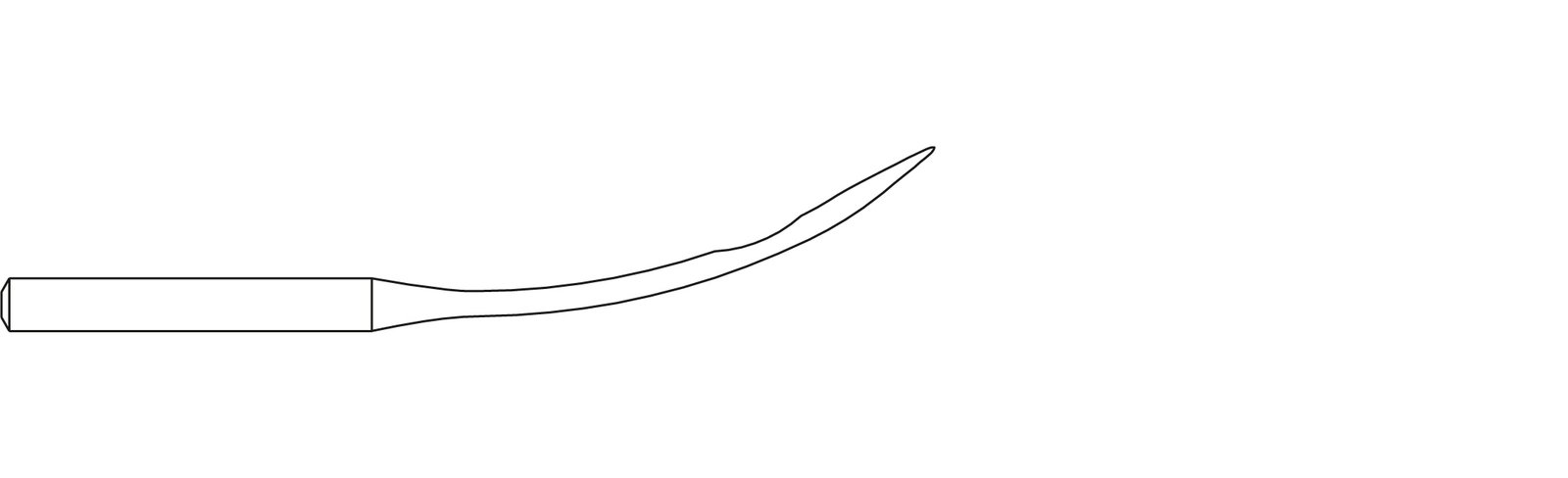

| Needle form description | M1 – Curved needle with one flat on the shank |
| Canu point | SUK |
| Canu designation | 06:60 |
| Catalog designation | 315201MC01FG |
| Further point designations | SUK |
| Further point designations 02 | B BALL |
| Further point designations 03 | M BALL |
| Further point designations 04 | SI |
| Further point designations 05 | BPM |
| Further point designations 06 | LAC |
| Further point designations 07 | R SUK |
| Further point designations 08 | U |
| Further point designations 09 | R KB |
| Technical sewing application | Overlock stitch |
| Stitch type class | 500 |
| Special(s) | Flat shank at 270° |
| Point style | FG - Cloth point |
| Needle system | UY 154 GHS |
| Needle system family | UY 154 |
| Variant | GHS |
| Pack standard | N-S-00021 – Packaging 11 |
| Customary needle designations | UYX 154 GAS B B |
| System designation 2 | 151X21 SUK |
| System designation 3 | UY 154 GLS SUK |
| System designation 4 | SY 1434 |
