Aiguille industrielle · UY 162 GBS
UY 162 GBS FFG Chromium
UY 162 GBS
FFG
Chromium
2
Point style FFG - Cloth point Small ball point • Round point with small ball • Suitable for fine and medium-weight knitted and woven fabrics • When penetrating the material, the small ball point displaces the loops so that the material doesn‘t get damaged • Perfectly suited for jersey and tricot fabrics Coating Chromium Needle with standard chrome coating. Special(s): Flat shank at 270° Recommended for: Fine knitwear, Woven fabrics Examples of use: Shirts, Blouses, Underwear
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 70/10 | 749472 | — | 100 pièces | 0.663 g |
| 80/12 | 753912 | — | 100 pièces | 0.663 g |
Caractéristiques techniques
| Shank diameter | 2.01 mm |
|---|---|
| Length butt to eye | 30.6 mm |
| Coating | Chromium |
| Needle form | M |

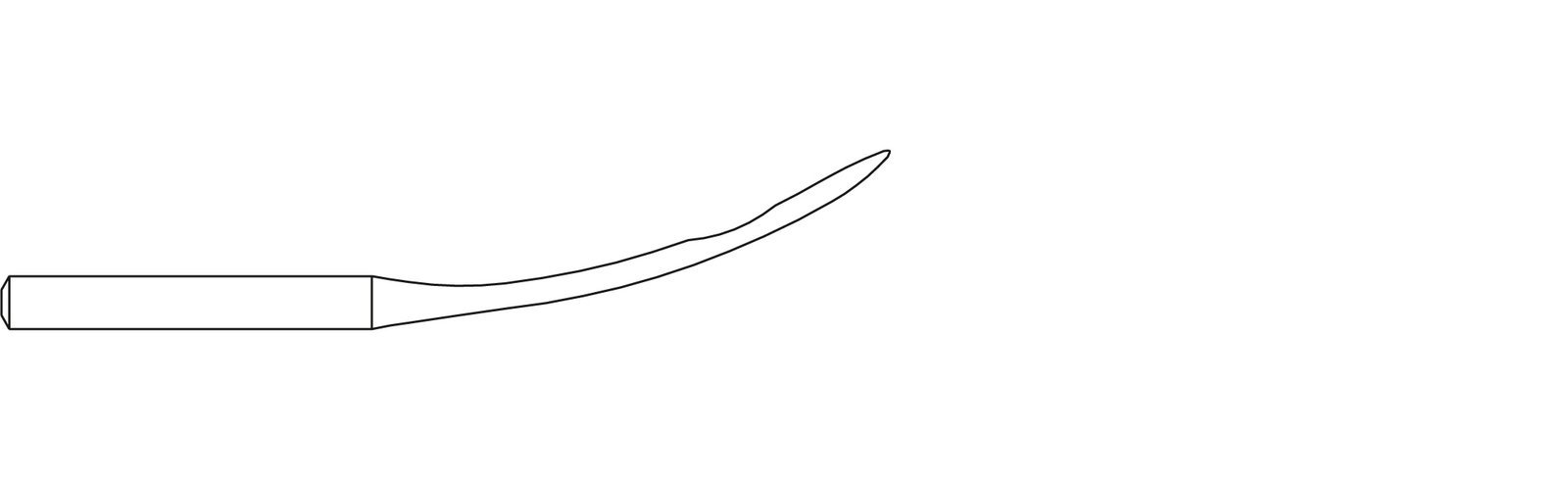

| Needle form description | M1 – Curved needle with one flat on the shank |
| Canu point | SES |
| Canu designation | 05:62 |
| Catalog designation | 306201MC01FFG |
| Further point designations | SES |
| Further point designations 02 | L BALL |
| Further point designations 03 | J BALL |
| Further point designations 04 | SIN |
| Further point designations 05 | NYR |
| Further point designations 06 | BPL |
| Further point designations 07 | TB |
| Further point designations 08 | B |
| Further point designations 09 | R K |
| Technical sewing application | Overlock stitch |
| Stitch type class | 500 |
| Special(s) | Flat shank at 270° |
| Recommended for | Fine knitwear, Woven fabrics |
| Examples of use | Shirts, Blouses, Underwear |
| Point style | FFG - Cloth point |
| Needle system | UY 162 GBS |
| Needle system family | UY 162 |
| Variant | GBS |
| Pack standard | N-S-00017 – Standard Packaging |
| Customary needle designations | WGX 576 J |
| System designation 2 | UY 162 SAS |
| System designation 3 | 576 SES |
| System designation 4 | W&G 576 SES |
| System designation 5 | 661 SES |
