Aiguille industrielle · UY 162 SAS

UY 162 SAS RG Chromium

UY 162 SAS RG Chromium
SystèmeUY 162 SAS
PointeRG
FinitionChromium
Tailles5

Point style RG - Cloth point Normal round point with small ball • Slightly rounded shape of the point • Suitable for knitted and woven fabrics and microfiber • Standard point for chainstitch as well as single and multihead embroidery • Perfectly suited for button sewing Coating Chromium Needle with standard chrome coating. Special(s): Flat shank at 270° Recommended for: Fine knitwear, Woven fabrics, Thin leather Examples of use: Shirts, Blouses, Trousers

Tailles disponibles

Taille (Nm)RéférenceLongueur totaleConditionnementPoids
65/9 742832 — 100 pièces 0.645 g
70/10 742842 — 100 pièces 0.663 g
75/11 742852 — 100 pièces 0.656 g
80/12 742862 — 100 pièces 0.663 g
90/14 742872 — 100 pièces 0.681 g

Caractéristiques techniques

Shank diameter2.01 mm
Length butt to eye30.6 mm
CoatingChromium
Needle formM

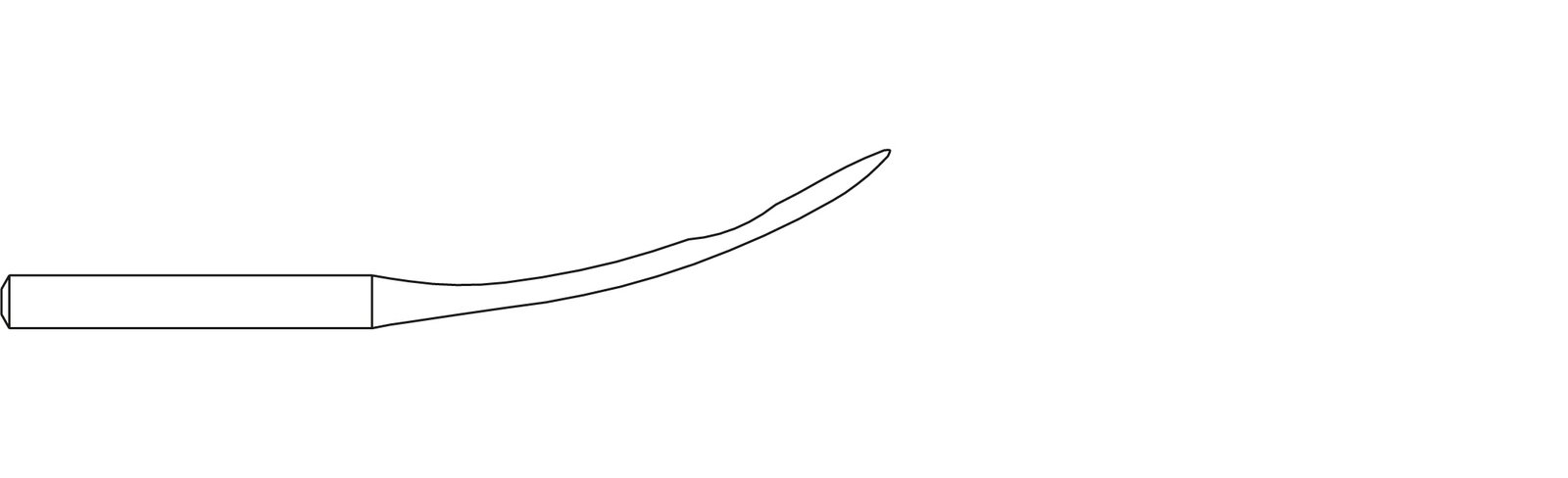

Needle form descriptionM1 – Curved needle with one flat on the shank
Canu pointR
Canu designation05:56
Catalog designation306201MC01RG
Further point designationsSTU
Further point designations 02STUB
Further point designations 03S BALL
Further point designations 04SET RT
Further point designations 05EH
Further point designations 06H SET
Further point designations 07NEW RD
Further point designations 08R STU
Technical sewing applicationOverlock stitch
Stitch type class500
Special(s)Flat shank at 270°
Point styleRG - Cloth point
Needle systemUY 162 SAS
Needle system familyUY 162
VariantSAS
Pack standardN-S-00017 – Standard Packaging
Customary needle designationsWGX 576
System designation 2275
System designation 3276
System designation 4576
System designation 5W&G 576
System designation 6661
System designation 7SY 6305
System designation 8SY 6310
