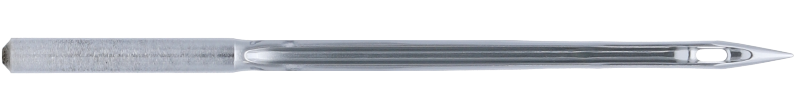

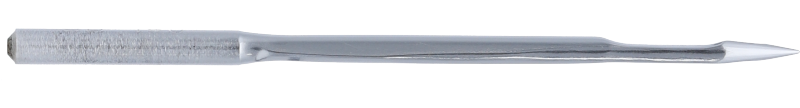

Aiguille industrielle · UY 180 GXS

UY 180 GXS FFG Chromium

SystèmeUY 180 GXS

PointeFFG

FinitionChromium

Tailles8

Point style FFG - Cloth point Small ball point • Round point with small ball • Suitable for fine and medium-weight knitted and woven fabrics • When penetrating the material, the small ball point displaces the loops so that the material doesn‘t get damaged • Perfectly suited for jersey and tricot fabrics Coating Chromium Needle with standard chrome coating. Recommended for: Fine knitwear, Woven fabrics Examples of use: Shirts, Blouses, Underwear

Tailles disponibles

Taille (Nm)	Référence	Longueur totale	Conditionnement	Poids
70/10	707442	—	100 pièces	0.604 g
80/12	707462	38.3 mm	100 pièces	0.805 g
90/14	707472	38.4 mm	100 pièces	0.813 g
100/16	707482	38.6 mm	100 pièces	0.826 g
110/18	707492	38.7 mm	100 pièces	0.851 g
125/20	707512	38.9 mm	100 pièces	0.802 g
140/22	707522	39 mm	100 pièces	0.923 g
150/	707532	39.2 mm	100 pièces	0.967 g

Caractéristiques techniques

Shank diameter	1.82 mm
Length butt to eye	34.1 mm
Coating	Chromium
Needle form	A
Needle form description	A1 – Straight needle with single groove and scarf
Canu point	SES
Canu designation	23:05
Catalog designation	341182AC02FFG
Further point designations	SES
Further point designations 02	L BALL
Further point designations 03	J BALL
Further point designations 04	SIN
Further point designations 05	NYR
Further point designations 06	BPL
Further point designations 07	TB
Further point designations 08	B
Further point designations 09	R K
Technical sewing application	Double lock stitch
Stitch type class	300
Point style	FFG - Cloth point
Needle system	UY 180 GXS
Needle system family	UY 180
Variant	GXS
Pack standard	N-S-00017 – Standard Packaging
Customary needle designations	UYX 180 GXS
System designation 2	UY 180 GNS
System designation 3	UY 185 GAS
