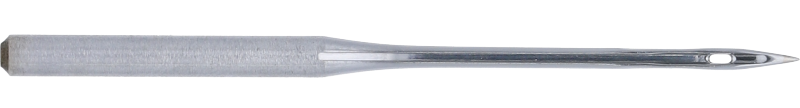

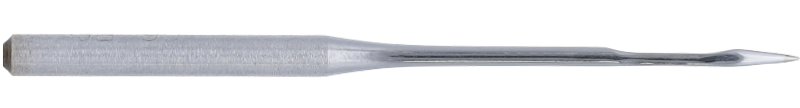

Aiguille industrielle · UY 183 GXS
UY 183 GXS FFG Chromium
UY 183 GXS
FFG
Chromium
2
Point style FFG - Cloth point Small ball point • Round point with small ball • Suitable for fine and medium-weight knitted and woven fabrics • When penetrating the material, the small ball point displaces the loops so that the material doesn‘t get damaged • Perfectly suited for jersey and tricot fabrics Coating Chromium Needle with standard chrome coating. Recommended for: Fine knitwear, Woven fabrics Examples of use: Shirts, Blouses, Underwear
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 80/12 | 707752 | — | 100 pièces | 0.584 g |
| 90/14 | 707762 | — | 100 pièces | 0.632 g |
Caractéristiques techniques
| Shank diameter | 1.82 mm |
|---|---|
| Length butt to eye | 29.6 mm |
| Coating | Chromium |
| Needle form | A |
| Needle form description | A1 – Straight needle with single groove and scarf |
| Canu point | SES |
| Canu designation | 05:24 |
| Catalog designation | 296182AC01FFG |
| Further point designations | SES |
| Further point designations 02 | L BALL |
| Further point designations 03 | J BALL |
| Further point designations 04 | SIN |
| Further point designations 05 | NYR |
| Further point designations 06 | BPL |
| Further point designations 07 | TB |
| Further point designations 08 | B |
| Further point designations 09 | R K |
| Technical sewing application | Double lock stitch |
| Stitch type class | 300 |
| Point style | FFG - Cloth point |
| Needle system | UY 183 GXS |
| Needle system family | UY 183 |
| Variant | GXS |
| Pack standard | N-S-00017 – Standard Packaging |
| Customary needle designations | UY 183 GCS |
| System designation 2 | UY 183 GHS |
| System designation 3 | UY 183 GNS |
| System designation 4 | UY 183 GXS |
| System designation 5 | SY 6235 |
