Aiguille industrielle · UY 204 GS
UY 204 GS RG Chromium
UY 204 GS
RG
Chromium
1
Point style RG - Cloth point Normal round point with small ball • Slightly rounded shape of the point • Suitable for knitted and woven fabrics and microfiber • Standard point for chainstitch as well as single and multihead embroidery • Perfectly suited for button sewing Coating Chromium Needle with standard chrome coating. Special(s): Flat shank at 90° Recommended for: Leightweight to and medium-weight knitwear and woven fabrics, Soft leather for clothing Examples of use: Jeans, Suits
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 90/14 | 707892 | 41.3 mm | 100 pièces | 0.818 g |
Caractéristiques techniques
| Shank diameter | 2 mm |
|---|---|
| Needle size Asia | 14 |
| Length butt to eye | 36.6 mm |
| Overall length | 41.3 mm |
| Shank length | 13.5 mm |
| Coating | Chromium |
| Needle form | B |

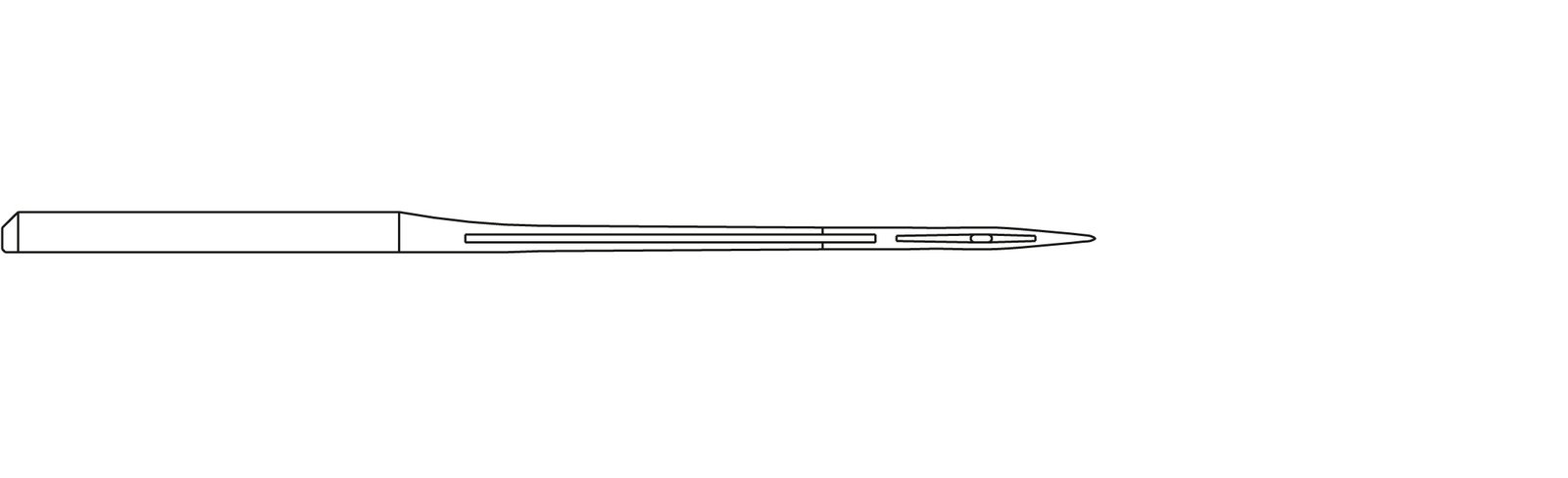

| Needle form description | B – Straight needle with double groove |
| Canu point | R |
| Canu designation | 25:09 |
| Catalog designation | 366200BC10RG |
| Further point designations | STU |
| Further point designations 02 | STUB |
| Further point designations 03 | S BALL |
| Further point designations 04 | SET RT |
| Further point designations 05 | EH |
| Further point designations 06 | H SET |
| Further point designations 07 | NEW RD |
| Further point designations 08 | R STU |
| Technical sewing application | Double chain stitch |
| Stitch type class | 400 |
| Special(s) | Flat shank at 90° |
| Recommended for | Leightweight to and medium-weight knitwear and woven fabrics, Soft leather for clothing |
| Examples of use | Jeans, Suits |
| Needle size | 90 Nm |
| Point style | RG - Cloth point |
| Needle system | UY 204 GS |
| Needle system family | UY 204 |
| Pack standard | N-S-00017 – Standard Packaging |
| Customary needle designations | UYX 204 GS |
| System designation 2 | SY 7071 |
| System designation 3 | UY 8463 GS |
