Aiguille industrielle · UY 8454 GHS
UY 8454 GHS FFG Chromium
UY 8454 GHS
FFG
Chromium
3
Point style FFG - Cloth point Small ball point • Round point with small ball • Suitable for fine and medium-weight knitted and woven fabrics • When penetrating the material, the small ball point displaces the loops so that the material doesn‘t get damaged • Perfectly suited for jersey and tricot fabrics Coating Chromium Needle with standard chrome coating. Special(s): Flat shank at 270°, Flat shank at 90° Recommended for: Fine knitwear, Woven fabrics Examples of use: Shirts, Blouses, Underwear
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 70/10 | 708212 | — | 100 pièces | 0.625 g |
| 80/12 | 708232 | — | 100 pièces | 0.64 g |
| 90/14 | 708242 | — | 100 pièces | 0.653 g |
Caractéristiques techniques
| Shank diameter | 2.01 mm |
|---|---|
| Length butt to eye | 31.5 mm |
| Coating | Chromium |
| Needle form | M |

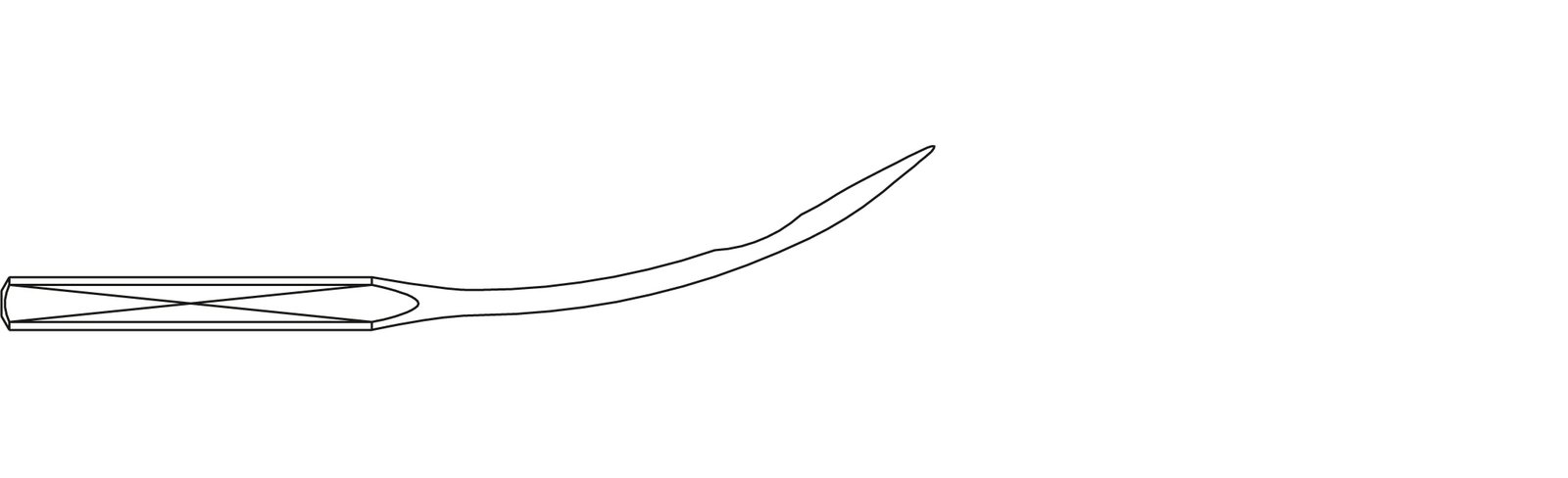

| Needle form description | M2 – Curved needle with two flats on the shank |
| Canu point | SES |
| Canu designation | 06:62 |
| Catalog designation | 315201MC03FFG |
| Further point designations | SES |
| Further point designations 02 | L BALL |
| Further point designations 03 | J BALL |
| Further point designations 04 | SIN |
| Further point designations 05 | NYR |
| Further point designations 06 | BPL |
| Further point designations 07 | TB |
| Further point designations 08 | B |
| Further point designations 09 | R K |
| Technical sewing application | Overlock stitch |
| Stitch type class | 500 |
| Special(s) | Flat shank at 270°, Flat shank at 90° |
| Point style | FFG - Cloth point |
| Needle system | UY 8454 GHS |
| Needle system family | UY 8454 |
| Variant | GHS |
| Pack standard | N-S-00021 – Packaging 11 |
| Customary needle designations | UY X 8454 |
| System designation 2 | SY 6437 |
