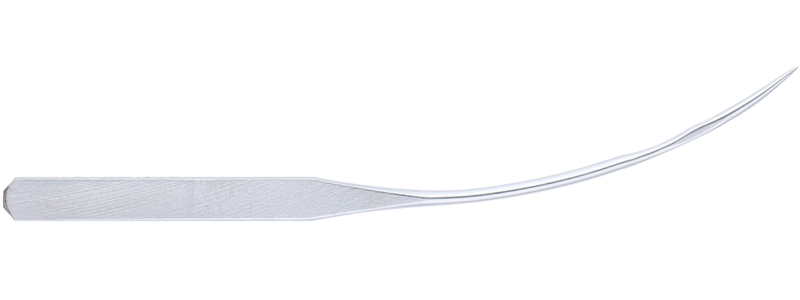

Aiguille industrielle · UY 8456 GS
UY 8456 GS RG Chromium
UY 8456 GS
RG
Chromium
3
Point style RG - Cloth point Normal round point with small ball • Slightly rounded shape of the point • Suitable for knitted and woven fabrics and microfiber • Standard point for chainstitch as well as single and multihead embroidery • Perfectly suited for button sewing Coating Chromium Needle with standard chrome coating. Special(s): Flat shank at 270°, Flat shank at 90° Recommended for: Fine knitwear, Woven fabrics, Thin leather Examples of use: Shirts, Blouses, Trousers
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 55/7 | 708382 | — | 100 pièces | 0.545 g |
| 65/9 | 708392 | — | 100 pièces | 0.561 g |
| 70/10 | 708402 | — | 100 pièces | 0.559 g |
Caractéristiques techniques
| Shank diameter | 2.01 mm |
|---|---|
| Length butt to eye | 31.5 mm |
| Shank length | 14 mm |
| Coating | Chromium |
| Needle form | M |

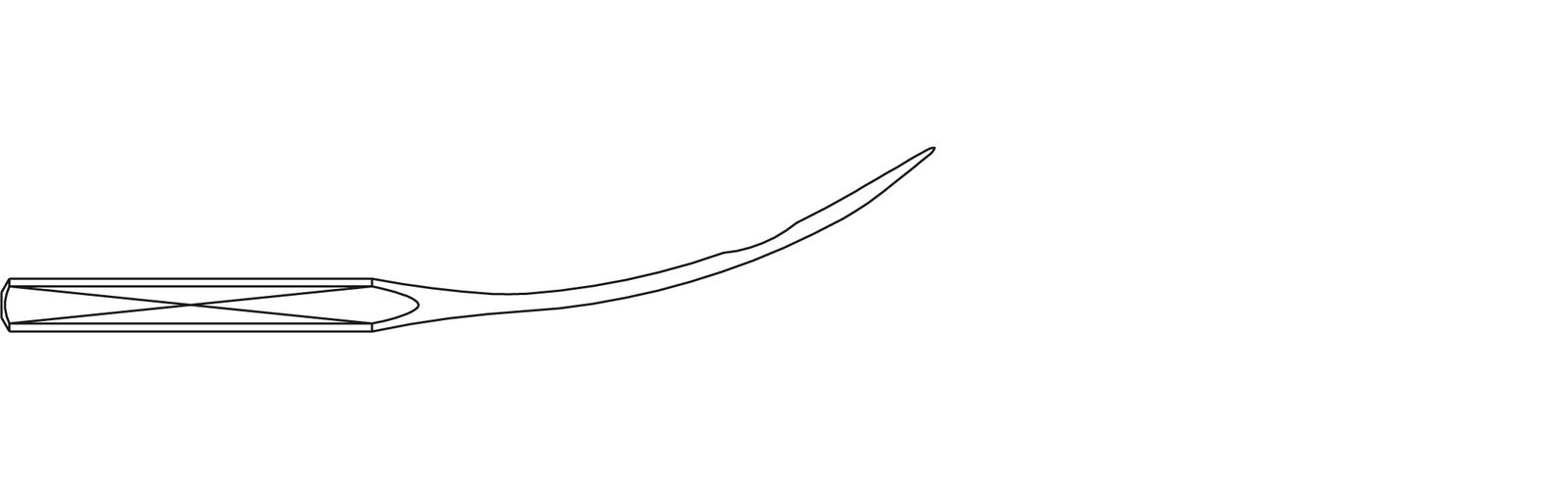

| Needle form description | M2 – Curved needle with two flats on the shank |
| Canu point | R |
| Canu designation | 06:64 |
| Catalog designation | 315201MC05RG |
| Further point designations | STU |
| Further point designations 02 | STUB |
| Further point designations 03 | S BALL |
| Further point designations 04 | SET RT |
| Further point designations 05 | EH |
| Further point designations 06 | H SET |
| Further point designations 07 | NEW RD |
| Further point designations 08 | R STU |
| Technical sewing application | Overlock stitch |
| Stitch type class | 500 |
| Special(s) | Flat shank at 270°, Flat shank at 90° |
| Recommended for | Fine knitwear, Woven fabrics, Thin leather |
| Examples of use | Shirts, Blouses, Trousers |
| Point style | RG - Cloth point |
| Needle system | UY 8456 GS |
| Needle system family | UY 8456 |
| Variant | GS |
| Pack standard | N-S-00021 – Packaging 11 |
| Customary needle designations | UO X 8456 GS |
| System designation 2 | SY 1443 |
