Aiguille industrielle · UY 943 GS
UY 943 GS QR Chromium
UY 943 GS
QR
Chromium
1

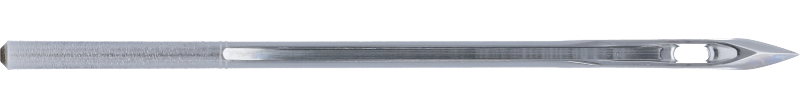

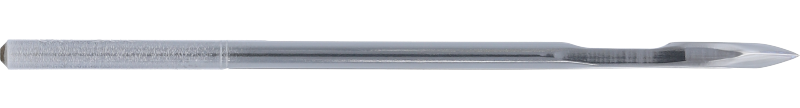

Point style QR - Cutting point Reverse square point • Cutting position at 0° • For hard and heavy material • Suitable for bag-closing. Coating Chromium Needle with standard chrome coating. Recommended for: Paper, Woven material with polypropylene Examples of use: Feed bags, Transport bags, Nets
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 200/25 | 708522 | 50 mm | 100 pièces | 1.352 g |
Caractéristiques techniques
| Shank diameter | 2 mm |
|---|---|
| Needle size Asia | 25 |
| Length butt to eye | 42.1 mm |
| Overall length | 50 mm |
| Shank length | 14 mm |
| Coating | Chromium |
| Needle form | B |

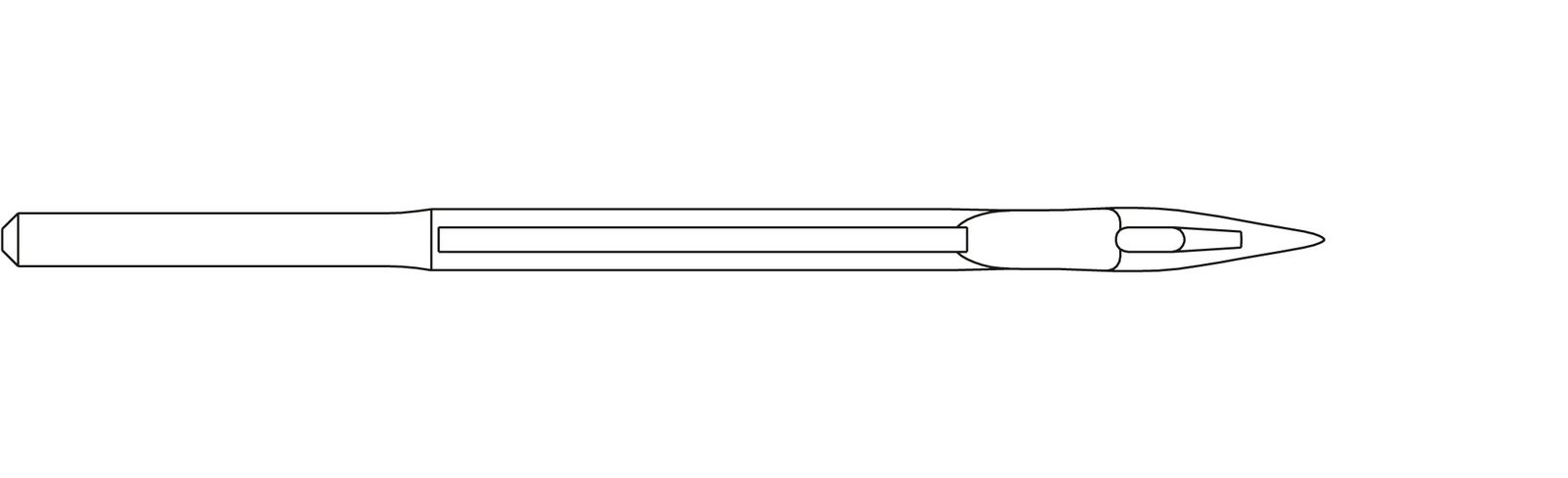

| Needle form description | B1 – Straight needle with double groove and scarf |
| Canu point | Q |
| Canu designation | 45:30 |
| Catalog designation | 421200BC01QR |
| Further point designations | RSQ |
| Technical sewing application | Bag closing |
| Stitch type class | 400 |
| Recommended for | Paper, Woven material with polypropylene |
| Examples of use | Feed bags, Transport bags, Nets |
| Needle size | 200 Nm |
| Point style | QR - Cutting point |
| Needle system | UY 943 GS |
| Needle system family | UY 943 |
| Pack standard | N-S-00851 – Packaging 37 |
| Customary needle designations | UYX 943 GS |
| System designation 2 | SMX1040 |
| System designation 3 | UY 143 SPEAR |
| System designation 4 | UY 943 G |
| System designation 5 | UY 943 GS |
| System designation 6 | UY 947 G |
| System designation 7 | UY 947 GS |
| System designation 8 | SY 7437 |
| System designation 9 | SY 7465 |
