Aiguille industrielle · UY 9854 GS
UY 9854 GS Q Chromium
UY 9854 GS
Q
Chromium
2
Point style Q - Cutting point Square point • Cutting position at 45° • For hard and heavy material • Suitable for bag-closing Coating Chromium Needle with standard chrome coating. Special(s): Shank notch Recommended for: Paper, Woven material with polypropylene Examples of use: Feed bags, Transport bags, Nets
Tailles disponibles
| Taille (Nm) | Référence | Longueur totale | Conditionnement | Poids |
|---|---|---|---|---|
| 200/25 | 708702 | — | 50 pièces | 2.25 g |
| 230/26 | 708712 | — | 50 pièces | 2.422 g |
Caractéristiques techniques
| Shank diameter | 3.04 mm |
|---|---|
| Length butt to eye | 42.1 mm |
| Shank length | 13 mm |
| Coating | Chromium |
| Needle form | T |

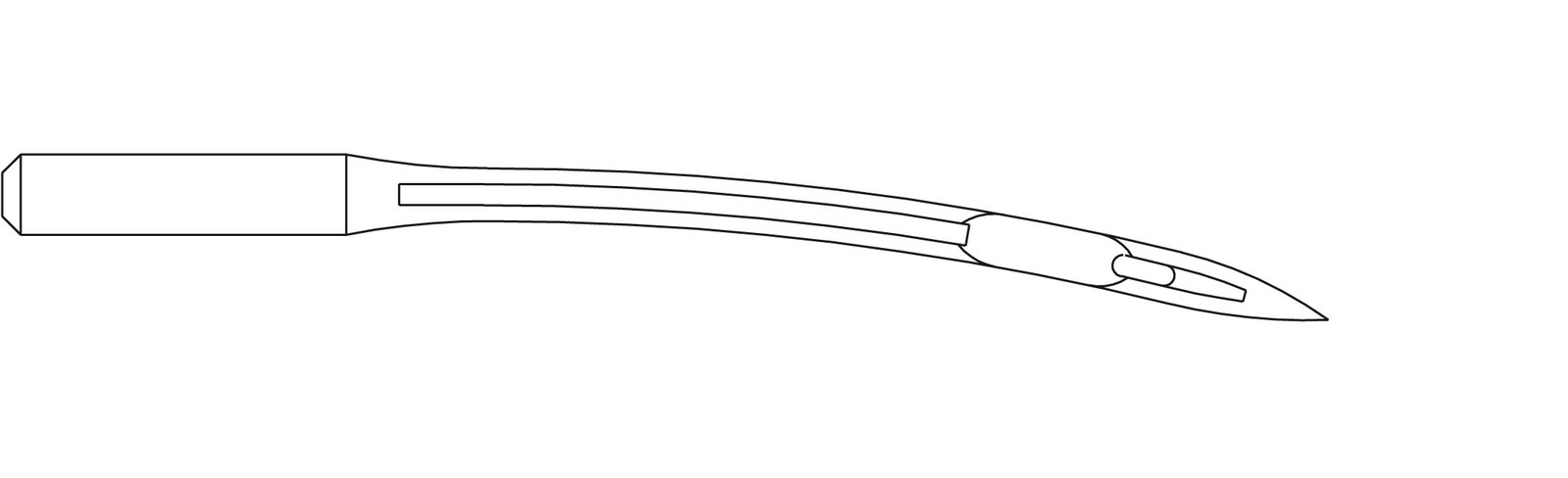

| Needle form description | T – Needle that is curved sidewise to the long groove |
| Canu point | Q |
| Canu designation | 45:41 |
| Catalog designation | 421304TC01Q |
| Further point designations | SQ |
| Technical sewing application | Bag closing |
| Special(s) | Shank notch |
| Recommended for | Paper, Woven material with polypropylene |
| Examples of use | Feed bags, Transport bags, Nets |
| Point style | Q - Cutting point |
| Needle system | UY 9854 GS |
| Needle system family | UY 9854 |
| Variant | GS |
| Pack standard | N-S-00851 – Packaging 37 |
| Customary needle designations | UO X 9854 |
| System designation 2 | SY 7445 |
| System designation 3 | UY 9854 G |
